Reflexes are very essential to humans since it helps us with exercise, sports and most of our everyday activities. Moreover with good reflex we can potentially evade life threatening situations. Adding to that a good reflex is a good indication of active lifestyle. Considering all the above we have built Reflex sensei , an Arduino powered reflex trainer with multiple features to improve reflex action of the user. The fun part is that this reflex trainer will work like a game so it will competitive, challenging and fun to train. You can find other interesting Arduino projects here.
Reflex sensei – Game brief and features:
This trainer game uses LED’s and pushbuttons like most of other Reflex test out there. The LEDs will light up in random pattern and the player need to press the corresponding switch/ pushbutton within allotted time frame to score. The interesting part about Reflex sensei is its features.
Mode selection:
The game has four modes to choose from which are
Athletes
Kids
Adults
Aged
The mode selection is made by the player using keypad. In the above modes listed Athlete mode will be most difficult to play while Aged will be least difficult of all.
Levels:
Each modes will have 4 levels. As levels progress difficultly will be high compared to their lower levels. But the player can only proceed to next level only if they reaches a particular threshold score. The threshold is usually a 70% of the total possible score in a particular level.
If a player is successful and scores high they can other players who played he/ she can enter their name in leaderboards. The leaderboard data will be stored in the EEPROM of Arduino. So a player will leave their mark in the game until another player beats him to it. The names of top four leaders will be displayed once a player finishes a game.
Science behind reflex timings:
As mentioned earlier the game has four modes each meant to cater players of certain demography. We dig in through some journals and papers on reaction timings to fix the time delays for respective modes. The timings in these modes are based on data from
and few other sources such as articles, forums and etc.
RT groups/ Levels
Athletes(ms)
Kids(ms)
Adults(ms)
Aged(ms)
Level 1
700
750
850
900
Level 2
650
700
800
850
Level 3
600
650
750
800
Level 4
580
630
720
770
Threshold values for each level:
The below table shows the target scores that players need to score to progress to next level. Possible score a player can score per level is 10 and the scores from previous level adds up to next level.
Groups/Levels
Athletes
Kids
Adults
Aged
Level 1
8
7
7
6
Level 2
17
16
15
15
Level 3
26
25
24
24

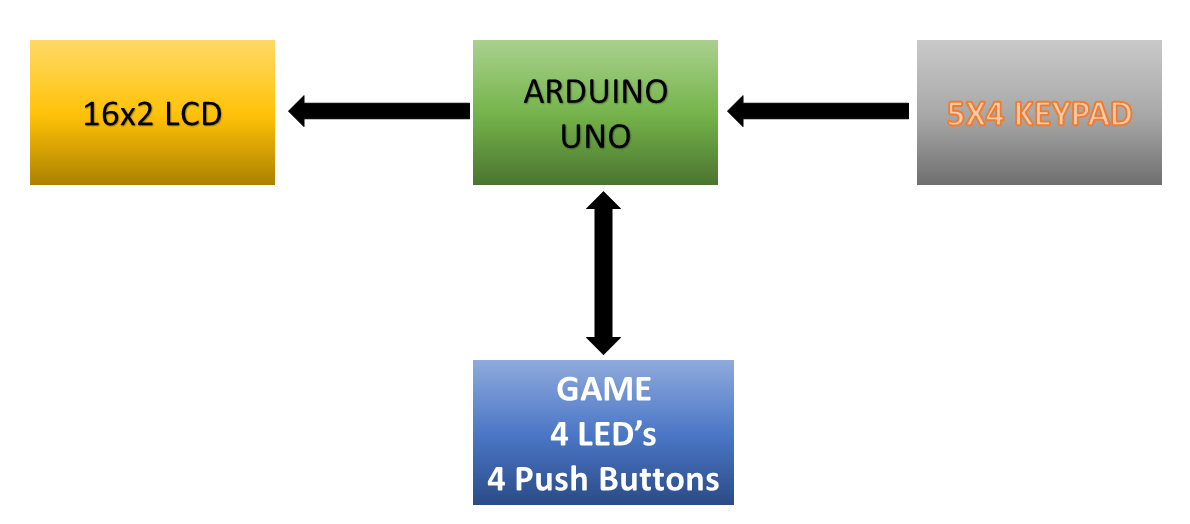

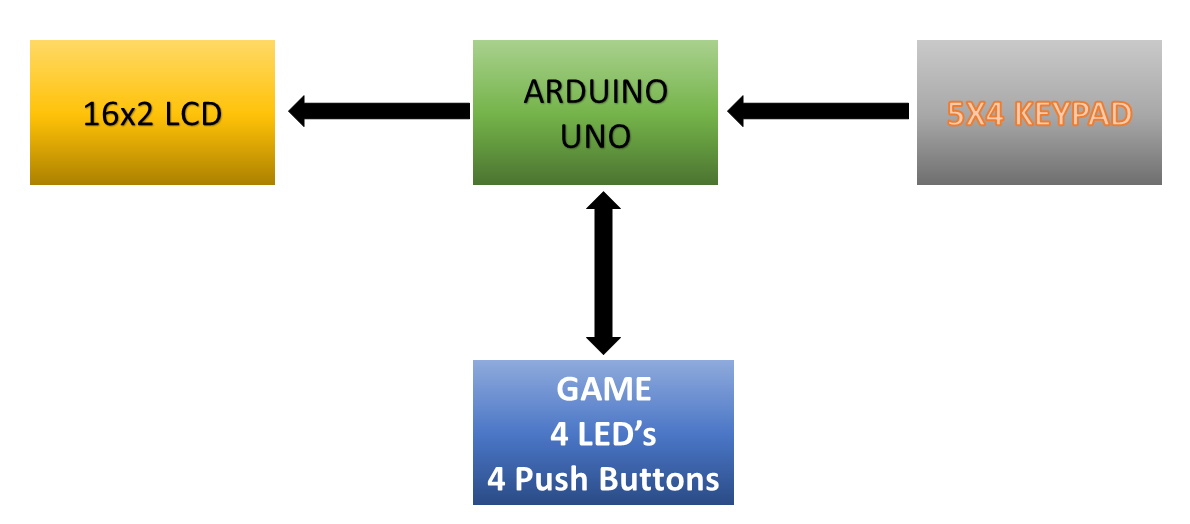

Block diagram:
The above shows the block diagram of our Arduino reflex trainer project. This uses 5×4 Keypad for taking mode inputs for mode selection and leader mode name inputs. The LCD to display the status of the game and acts as an interface to interact with users. The Game unit has 4 LED’s and 4 push buttons. This is unit which the player will use to play and train using this game.

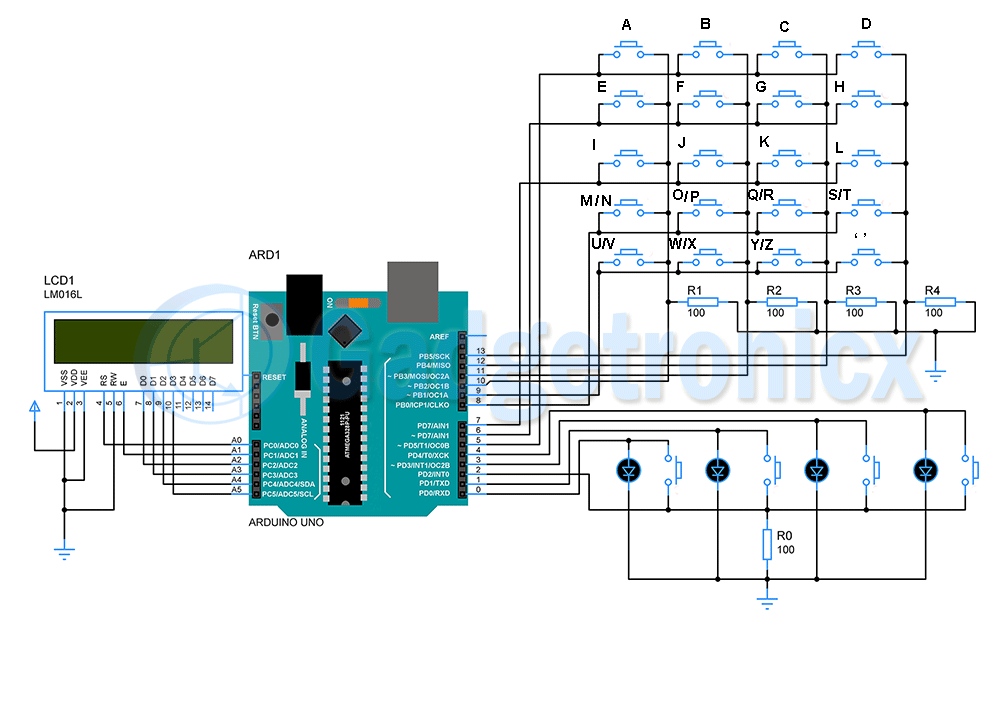

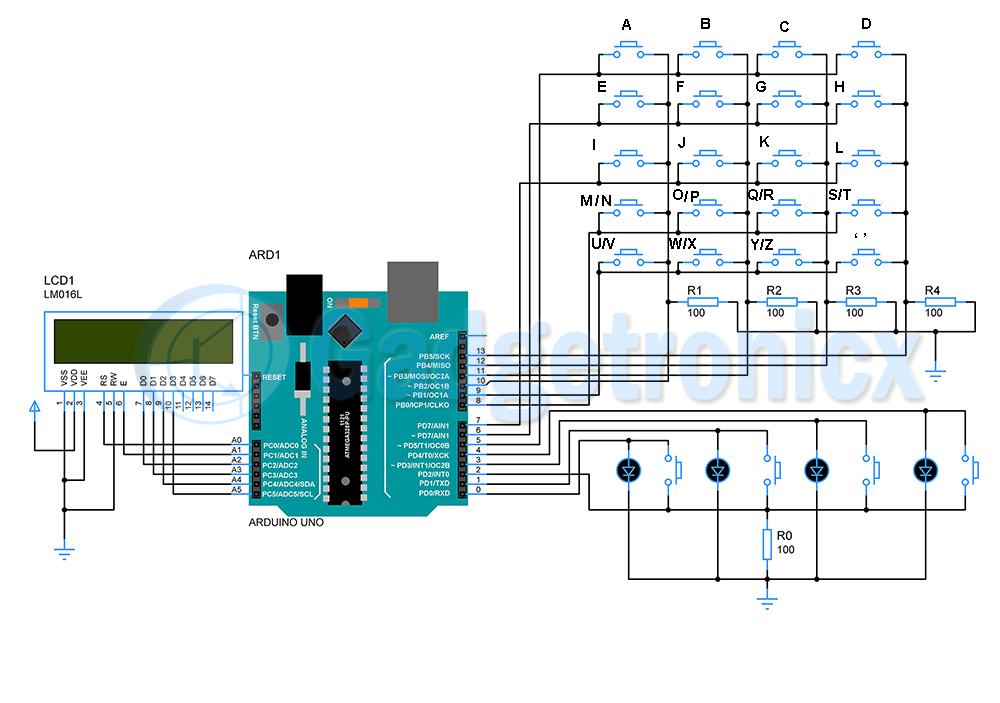

Circuit diagram of Reflex trainer:

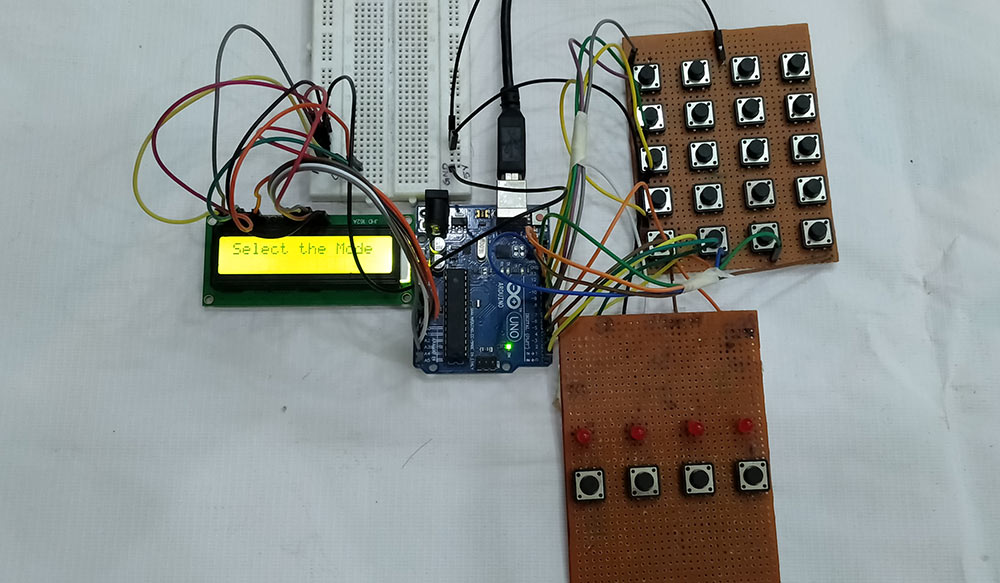

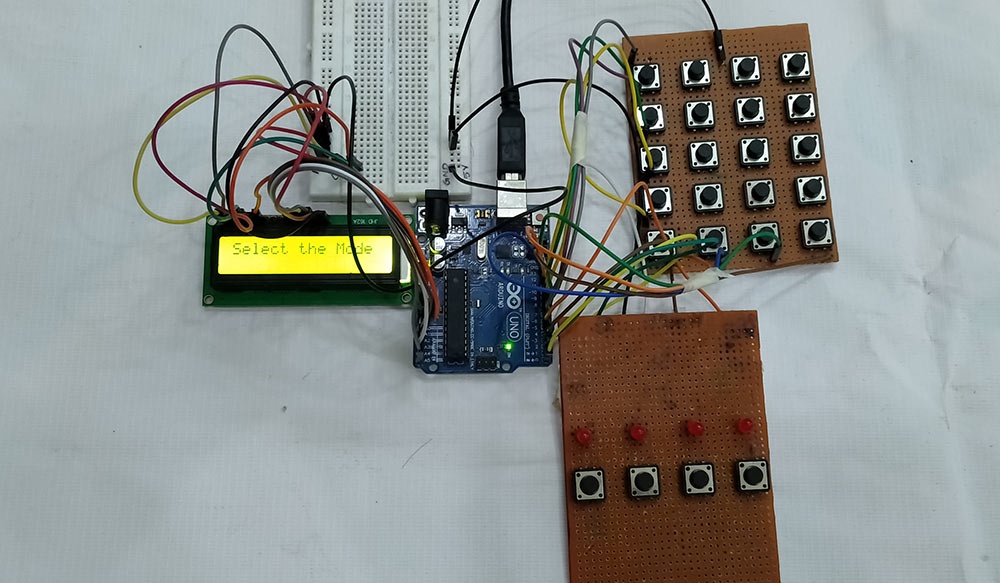

Prototype:
Working sequence:
When turned ON Arduino initializes the LCD and scans for input from 5×4 Keypad. Upon mode selection by the user Arduino selects the game timings and delays as per the chosen mode. Arduino blinks the LED 4 times to indicate the game is about to start.
Arduino then lights up LEDs in random manner and scans the game keys for button press within the stipulated time. If button press occurs within the time frame the player score will increment. Arduino lights up LEDs 10 instances per level meaning that player can score 10 points per level.
Once a level ends the score will be compared against the threshold score for that level and mode. When player score matches or exceeds threshold score he/ she will advance to next level and continue up to level 4. If score is below threshold the game exits to show the leaderboard and return to mode selection for next game.
Algorithm:
Initialize LCD.
Define all the input and output pins used.
Initialize EEPROM with default values for the leaderboard:
-scores with 0
-names with ‘-‘
Set the score to zero.
Get the mode from the player by scanning 5×4 keypad using polling method.
After taking mode selection input jump to step 9.
For the four modes Athletes, Kids, Adults and Aged.
– Assign the game timings from the above table.
– Set the level threshold values for each levels from above table.
– Run the random LED sequence 10 times each level and scan for button press using interrupt at pin 9.
– If button press occurs within allocated time delay increment the score.
– When the level is elapsed, compare the player score with threshold score for that level.
– If Player score is greater than or equals to threshold score proceed to next level.
– Player moves to the next level which is indicated by blinking LED pattern.
– Disable the game buttons when the level up animation occurs to prevent players from cheating.
– Player proceeds with next level and advance to play other level based on his/ her performance.
– If player scores less than threshold score, end the game and jump to step 8.
Compare the player score with the scores stored in the EEPROM ( leaderboard )
If player scored more than players in leaderboard go to step 10, else go to step 12
Enable the 5×4 keypad polling to enable player to enter his name.
Update the EEPROM ( leaderboard ) with Player name in appropriate position based on his score ( Position 1, 2 respectively ), go to step 12.
Read the below values from EEPROM
– Mode selected
– Leader 1 details from EEPROM
– Leader 2 details from EEPROM
– Leader 3 details from EEPROM
– Leader 4 details from EEPROM
Scroll the above leader details from EEPROM on LCD (vertical scrolling) for 2 seconds.
/*
Reflex sensei is a Relex trainer game built using Arduino Uno. This trainer game has 4 modes to cater Athletes, Adults, Kids and Aged.
Also there is 4 different levels in each modes to make the experience challenging and fun.
Full documentation - https://www.gadgetronicx.com/reflex-sensei-arduino-powered-trainer-game
Authors: Nihar Gupta and Labishetty Mrudula from www.gadgetronicx.com
*/
// declaring header files
#include<LiquidCrystal.h>
#include<EEPROM.h>
// declaring the lcd variables
#define lcd_register_select A0
#define lcd_enable A1
#define lcd_data_pin_4 A2
#define lcd_data_pin_5 A3
#define lcd_data_pin_6 A4
#define lcd_data_pin_7 A5
// declaring the interrupt pin
#define interrupt_pin 2
//defining buttons (i.e. led pins)
#define button1 0
#define button2 1
#define button3 3
#define button4 4
// defining delay factor for multiplexed pins of keypad
#define delay_button 400 //400ms
// initilizing score of a player with 0
int score=0;
// initilizing random_value variable for storing the random values
int random_value=0;
//defining rows and coloums for keypad
#define row1 5
#define row2 6
#define row3 7
#define row4 8
#define row5 9
#define col1 10
#define col2 11
#define col3 12
#define col4 13
// initilizing modeselected as 0
int modeselected=0;
// Defining playersname variable to store the current player name
String playersname; //to store name of the player
// making the lcd variables
LiquidCrystal lcd(lcd_register_select, lcd_enable, lcd_data_pin_4, lcd_data_pin_5, lcd_data_pin_6, lcd_data_pin_7);
void setup() {
// put your setup code here, to run once:
lcd.begin(16,2); // initializing lcd
attachInterrupt(digitalPinToInterrupt(interrupt_pin), point_count, RISING); //Setting the external interrupt on pin 2 raising edge
// declaring button pins as output pins to make led's glow
pinMode(button1,OUTPUT) ; //Button 1
pinMode(button2,OUTPUT) ; //Button 2
pinMode(button3,OUTPUT) ; //Button 3
pinMode(button4,OUTPUT) ; //Button 4
// defining keypad pins as output and input
pinMode(row1,OUTPUT); // defining rows are output and coloumn as input
pinMode(row2,OUTPUT); // rows are used to write the data (i.e. 0 or 1) and coloumn are used for output data (i.e. 0 or 1)
pinMode(row3,OUTPUT);
pinMode(row4,OUTPUT);
pinMode(row5,OUTPUT);
pinMode(col1,INPUT);
pinMode(col2,INPUT);
pinMode(col3,INPUT);
pinMode(col4,INPUT);
// initilizing all buttons (i.e. led's) low
digitalWrite(button1,LOW);
digitalWrite(button2,LOW);
digitalWrite(button3,LOW);
digitalWrite(button4,LOW);
// initilizing EEPROM memory by a default value
EEPROM_init(); // initializing eeprom will 0 scores
}
// loop part runs infinite times
void loop() {
// initializing score to 0 so that everytime when a new player play the game his score will be 0 initially
score=0;
// making lcd to print "Select the mode"
lcd.clear();
lcd.setCursor(0,0);
lcd.print("Select the Mode");
/* selectthemode function returns the mode selected by the user
this funtion waits until the users selects the mode */
modeselected=selectthemode();
// This all indicates the game is going to start
lcd.clear();
lcd.setCursor(5,0);
lcd.print("Lets Play!!");
// making leds high and low for 500ms to indicate the start of game
digitalWrite(button1,HIGH);
delay(500);
digitalWrite(button1,LOW);
digitalWrite(button2,HIGH);
delay(500);
digitalWrite(button2,LOW);
digitalWrite(button3,HIGH);
delay(500);
digitalWrite(button3,LOW);
digitalWrite(button4,HIGH);
delay(500);
digitalWrite(button4,LOW);
lcd.clear();
delay(1000);
/* As per the player input "modeselected "
respective function will be called to start the game */
if(modeselected==1) athletes(); //calling athletes funtion
else if(modeselected==2) kids(); //calling kids funtion
else if(modeselected==3) adults(); //calling adults funtion
else if(modeselected==4) aged(); //calling aged funtion
/* check_learderboard will check the leaderboard
it checks wheather the current player is allowded to enter into the leaderboard
This checking depends on modeselected and also previous player scores
This funtion returns a boolean value
true --> if the current player is allowded into the leaderboard
false --> if the current player is not allowded into the leaderboard
*/
bool check = check_leaderboard();
if(check==true)
{
/*
* This true block will be exeguted when the player is allowded into leaderboard
* This entry requires the player name
* It takes the player name from player_name funtion
* and it will update the leaderboard
*/
lcd.clear();
lcd.setCursor(0,0);
lcd.print("Enter your name");
playersname=player_name(); // It returns the player name with 5 characters
update_leaderboard(); // It updates the leaderboard and also prints the present leaderboard in lcd
}
else
{
/*
* This block will be executed when the player is not allowded into leaderboard
* So this will direcly jumps to print the leaderboard
*/
lcd_leaderboard(); // It prints the leaderborad i.e. previous leaderboard only
}
}
/*
* player_name funtion will take the player name as input
* It takes exactly 5 characters of the players name
* This function internally calls get_char function
* Which returns a character according to the user input from the keyboard
* After taking 5 characters it is converted into string and that string i.e. player name
* is returned to the loop block
*/
String player_name()
{
int character_number=1;
String player_name="";
while(character_number<=5)
{ // this loop runs 5 times and each time it takes a character from the get_char funtion
char character;
character=get_char();
player_name+=character;
character_number+=1;
delay(300);
}
return player_name;
}
/*
* get_char function will be used to get a character from the user
* This function activates the keypad
* It activates i.e. makes each row high for some time and at each time
* it takes the colomns values and checks which coloums are high
* And returns that equavalent character to the player_name() funtion
* Some buttons are multiplexed with two characters in such a case it waits for delay_button time
* and checks if the same button is pressed once more
* And according to the condition it returns the equivalent character
*
* KEYPAD EQUIVALENT CHARACTERS
* COL1 COL2 COL3 COL4
* ROW 1 'A' 'B' 'C' 'D'
* ROW 2 'E' 'F' 'G' 'H'
* ROW 3 'I' 'J' 'K' 'L'
* ROW 4 'M/N' 'O/P' 'Q/R' 'S/T'
* ROW 5 'U/V' 'W/X' 'Y/Z' ' ' (i.e. white space)
*/
char get_char()
{
while(1) // runs until the player presses a button
{
digitalWrite(row1,HIGH);//making row1 as high and all other as low
digitalWrite(row2,LOW);
digitalWrite(row3,LOW);
digitalWrite(row4,LOW);
digitalWrite(row5,LOW);
if(digitalRead(col1)==1)
{
while(digitalRead(col1)==1); //wating until the player release the pressed button
return 'A'; // returning resp character if any button is pressed
}
else if(digitalRead(col2)==1)
{
while(digitalRead(col2)==1); //wating until the player release the pressed button
return 'B'; // returning resp character if any button is pressed
}
else if(digitalRead(col3)==1)
{ while(digitalRead(col3)==1);//wating until the player release the pressed button
return 'C'; // returning resp character if any button is pressed
}
else if(digitalRead(col4)==1)
{ while(digitalRead(col4)==1); //wating until the player release the pressed button
return 'D'; // returning resp character if any button is pressed
}
digitalWrite(row1,LOW); // making row1 low (which was high before)
digitalWrite(row2,HIGH); // now making row2 as high and here all other rows will be low
if(digitalRead(col1)==1)
{
while(digitalRead(col1)==1); //wating until the player release the pressed button
return 'E'; // returning resp character if any button is pressed
}
else if(digitalRead(col2)==1)
{ while(digitalRead(col2)==1); //wating until the player release the pressed button
return 'F'; // returning resp character if any button is pressed
}
else if(digitalRead(col3)==1)
{ while(digitalRead(col3)==1); //wating until the player release the pressed button
return 'G'; // returning resp character if any button is pressed
}
else if(digitalRead(col4)==1)
{ while(digitalRead(col4)==1); //wating until the player release the pressed button
return 'H'; // returning resp character if any button is pressed
}
digitalWrite(row2,LOW);// making row1 low (which was high before)
digitalWrite(row3,HIGH);// now making row2 as high and here all other rows will be low
if(digitalRead(col1)==1)
{
while(digitalRead(col1)==1); //wating until the player release the pressed button
return 'I';// returning resp character if any button is pressed
}
else if(digitalRead(col2)==1)
{ while(digitalRead(col2)==0); //wating until the player release the pressed button
return 'J'; // returning resp character if any button is pressed
}
else if(digitalRead(col3)==1)
{ while(digitalRead(col3)==1); //wating until the player release the pressed button
return 'K';// returning resp character if any button is pressed
}
else if(digitalRead(col4)==1)
{ while(digitalRead(col4)==0); //wating until the player release the pressed button
return 'L'; // returning resp character if any button is pressed
}
digitalWrite(row3,LOW);// making row1 low (which was high before)
digitalWrite(row4,HIGH);// now making row2 as high and here all other rows will be low
if(digitalRead(col1)==1)
{ // these buttons have multiplexed characters each time it cheaks wheater it is pressed one more time
while(digitalRead(col1)==1); //wating until the player release the pressed button
for(int i=0;i<delay_button;i+=10) // checking the same button is pressed for one more time for a delay_button time
{ delay(10);
if(digitalRead(col1)==1)
{ // if the same button is pressed
while(digitalRead(col1)==1); //wating until the player release the pressed button
return 'M'; // returns the second character associated with the button
}
}
return 'N'; // returns the first character associated with the button
}
else if(digitalRead(col2)==1)
{
// these buttons have multiplexed characters each time it cheaks wheater it is pressed one more time
while(digitalRead(col2)==1);//wating until the player release the pressed button
for(int i=0;i<delay_button;i+=10) // checking the same button is pressed for one more time for a delay_button time
{ delay(10);
if(digitalRead(col2)==1)
{ // if the same button is pressed
while(digitalRead(col2)==1);//wating until the player release the pressed button
return 'O'; // returns the second character associated with the button
}
}
return 'P'; // returns the first character associated with the button
}
else if(digitalRead(col3)==1)
{
// these buttons have multiplexed characters each time it cheaks wheater it is pressed one more time
while(digitalRead(col3)==1); //wating until the player release the pressed button
for(int i=0;i<delay_button;i+=10) // checking the same button is pressed for one more time for a delay_button time
{ delay(10);
if(digitalRead(col3)==1)
{ // if the same button is pressed
while(digitalRead(col3)==1); //wating until the player release the pressed button
return 'Q'; // returns the second character associated with the button
}
}
return 'R'; // returns the first character associated with the button
}
else if(digitalRead(col4)==1)
{
// these buttons have multiplexed characters each time it cheaks wheater it is pressed one more time
while(digitalRead(col4)==1); //wating until the player release the pressed button
for(int i=0;i<delay_button;i+=10) // checking the same button is pressed for one more time for a delay_button time
{ delay(10);
if(digitalRead(col4)==1)
{ // if the same button is pressed
while(digitalRead(col4)==1); //wating until the player release the pressed button
return 'S'; // returns the second character associated with the button
}
}
return 'T'; // returns the first character associated with the button
}
digitalWrite(row4,LOW);// making row1 low (which was high before)
digitalWrite(row5,HIGH); // now making row2 as high and here all other rows will be low
if(digitalRead(col1)==1)
{
// these buttons have multiplexed characters each time it cheaks wheater it is pressed one more time
while(digitalRead(col1)==1); //wating until the player release the pressed button
for(int i=0;i<delay_button;i+=10) // checking the same button is pressed for one more time for a delay_button time
{ delay(10);
if(digitalRead(col1)==1)
{ // if the same button is pressed
while(digitalRead(col1)==1); //wating until the player release the pressed button
return 'U'; // returns the second character associated with the button
}
}
return 'V'; // returns the first character associated with the button
}
else if(digitalRead(col2)==1)
{
// these buttons have multiplexed characters each time it cheaks wheater it is pressed one more time
while(digitalRead(col2)==1); //wating until the player release the pressed button
for(int i=0;i<delay_button;i+=10) // checking the same button is pressed for one more time for a delay_button time
{ delay(10);
if(digitalRead(col2)==1)
{ // if the same button is pressed
while(digitalRead(col2)==1); //wating until the player release the pressed button
return 'W'; // returns the second character associated with the button
}
}
return 'X'; // returns the first character associated with the button
}
else if(digitalRead(col3)==1)
{
// these buttons have multiplexed characters each time it cheaks wheater it is pressed one more time
while(digitalRead(col3)==1); //wating until the player release the pressed button
for(int i=0;i<delay_button;i+=10) // checking the same button is pressed for one more time for a delay_button time
{ delay(10);
if(digitalRead(col3)==1)
{ // if the same button is pressed
while(digitalRead(col3)==1); //wating until the player release the pressed button
return 'Y'; // returns the second character associated with the button
}
}
return 'Z'; // returns the first character associated with the button
}
else if(digitalRead(col4)==1)
{ // this button returns a space
while(digitalRead(col4)==1); //wating until the player release the pressed button
return ' ';
}
}
}
/* function for mode selection
This function call the get_mode function to get the mode
This funtion returns an integer based on the mode selected
i.e Return value Mode Associated
1 Athletes
2 Kids
3 Adults
4 Aged
*/
int selectthemode() //function for mode selction
{ int mode;
mode=get_mode();
return mode;
}
/* This function will be used to select the mode
It activates the row1 and keeps reading the colomns
It waits until a key is pressed
It also waits until a user release the pressed key
*/
int get_mode()
{
while(1)// It also waits until a user release the pressed key
{
digitalWrite(row1,HIGH);//making row1 as high and all other as low
digitalWrite(row2,LOW);
digitalWrite(row3,LOW);
digitalWrite(row4,LOW);
digitalWrite(row5,LOW);
if(digitalRead(col1)==1)
{
while(digitalRead(col1)==1);
return 1; // returning mode 1 if the button is pressed
}
else if(digitalRead(col2)==1)
{
while(digitalRead(col2)==1);
return 2; // returning mode 2 if the button is pressed
}
else if(digitalRead(col3)==1)
{
while(digitalRead(col3)==1);
return 3; // returning mode 3 if the button is pressed
}
else if(digitalRead(col4)==1)
{
while(digitalRead(col4)==1);
return 4; // returning mode 4 if the button is pressed
}
}
}
/*check_leaderboard function will check the
Given score will change the eeprom or not
The main logic here is checking the least player score with the present player score
If the least player score is less than present player score then return TRUE else FALSE
*/
bool check_leaderboard()
{
if(modeselected == 1) return score>EEPROM[3]; //return true if score greater than threshold value for Athletes mode
else if(modeselected == 2) return score>EEPROM[7]; //return true if score greater than threshold value for Kids mode
else if(modeselected == 3) return score>EEPROM[11]; //return true if score greater than threshold value for Adults mode
else if(modeselected == 4) return score>EEPROM[15]; //return true if score greater than threshold value for Aged mode
return false;
}
/*update_leaderboard will update the leaderboard accoring to the requirements
This updation depends on the mode_selected
It also depends on the present person score compaired with all other persons in that respective mode
And updates the eeprom data respectively
*/
/*
* EEPROM Memory allocation
* ----------------------------------------------------------------
* EERPOM_Memory_Index Used_For
* -----------------------------------------------------------------
* [0-3] Scores of Athletes mode four players
* [4-7] Scores of Kids mode four players
* [8-11] Scores of Adults mode four players
* [12-15] Scores of Aged mode four players
* -----------------------------------------------------------------
* Mode Player_Number EEPROM_Memeory_Index
* for storing Player_Name (i.e. 5 characters)
* -----------------------------------------------------------------
* Athletes 1 [16-20]
* 2 [21-25]
* 3 [25-30]
* 4 [31-35]
* Kids 1 [36-40]
* 2 [41-45]
* 3 [45-50]
* 4 [51-55]
* Adults 1 [56-60]
* 2 [61-65]
* 3 [65-70]
* 4 [71-75]
* Aged 1 [76-80]
* 2 [81-85]
* 3 [85-90]
* 4 [91-95]
* ------------------------------------------------------------------
*/
void update_leaderboard()
{ // here in this funtion i represents index of EEPROM
if(modeselected == 1) // checking the present mode is Athletes
{
if(score>EEPROM[0]) // checking with 1st person
{
for(int i=31;i<=35;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 4th person with 3rd person
for(int i=26;i<=30;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 3rd person with 2nd person
for(int i=21;i<=25;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 2nd person with 1st person
for(int i=16;i<=20;i++) EEPROM[i] = playersname[i-16]; // updating the present person into 1st position
EEPROM[3]=EEPROM[2]; // changing the saved score according to the above changes
EEPROM[2]=EEPROM[1];
EEPROM[1]=EEPROM[0];
EEPROM[0]=score;
}
else if(score>EEPROM[1]) // checking with 2nd person
{
for(int i=31;i<=35;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 4th person with 3rd person
for(int i=26;i<=30;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 3rd person with 2nd person
for(int i=21;i<=25;i++) EEPROM[i]= playersname[i-21]; // updating the present person into 2nd position
EEPROM[3]=EEPROM[2]; // changing the saved score according to the above changes
EEPROM[2]=EEPROM[1];
EEPROM[1]=score;
}
else if(score>EEPROM[2]) // checking with 3rd person
{
for(int i=31;i<=35;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 4th person with 3rd person
for(int i=22;i<=26;i++) EEPROM[i]=char(playersname[i-22]); // updating the present person into 3rd position
EEPROM[3]=EEPROM[2]; // changing the saved score according to the above changes
EEPROM[2]=score;
}
else if(score>EEPROM[3]) // checking with 4th person
{
for(int i=31;i<=35;i++) EEPROM[i]=playersname[i-31];// updating the present person into 4th position
EEPROM[3]=score; // changing the saved score according to the above changes
}
}
else if(modeselected==2)// checking the present mode is Kids
{
if(score>EEPROM[4]) // checking with 1st person
{
for(int i=51;i<=60;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 4th person with 3rd person
for(int i=46;i<=50;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 3rd person with 2nd person
for(int i=41;i<=45;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 2nd person with 1st person
for(int i=36;i<=40;i++) EEPROM[i] = playersname[i-36]; // updating the present person into 1st position
EEPROM[7]=EEPROM[6];// changing the saved score according to the above changes
EEPROM[6]=EEPROM[5];
EEPROM[5]=EEPROM[4];
EEPROM[4]=score;
}
else if(score>EEPROM[5])// checking with 2nd person
{
for(int i=51;i<=55;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 4th person with 3rd person
for(int i=46;i<=50;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 3rd person with 2nd person
for(int i=41;i<=45;i++) EEPROM[i]= playersname[i-41];// updating the present person into 1st position
EEPROM[7]=EEPROM[6];// changing the saved score according to the above changes
EEPROM[6]=EEPROM[5];
EEPROM[5]=score;
}
else if(score>EEPROM[6]) //checking with 3nd person
{
for(int i=51;i<=55;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 4th person with 3rd person
for(int i=46;i<=51;i++) EEPROM[i]=playersname[i-46]; // updating the present person into 1st position
EEPROM[7]=EEPROM[6];// changing the saved score according to the above changes
EEPROM[6]=score;
}
else if(score>EEPROM[7]) //checking with 4th person
{
for(int i=51;i<=55;i++) EEPROM[i]=playersname[i-51];
EEPROM[7]=score;// changing the saved score according to the above changes
}
}
else if(modeselected == 3) //executes if Adults
{
if(score>EEPROM[8]) //checking with 1st person
{
for(int i=71;i<=75;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 4th person with 3rd person
for(int i=66;i<=70;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 3rd person with 2nd person
for(int i=61;i<=65;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 2nd person with 1st person
for(int i=56;i<=60;i++) EEPROM[i] = playersname[i-56]; // updating the present person into 1st position
EEPROM[11]=EEPROM[10];// changing the saved score according to the above changes
EEPROM[10]=EEPROM[9];
EEPROM[9]=EEPROM[8];
EEPROM[8]=score;
}
else if(score>EEPROM[9])// checking with 2nd person
{
for(int i=71;i<=75;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 4th person with 3rd person
for(int i=66;i<=70;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 3rd person with 2nd person
for(int i=61;i<=65;i++) EEPROM[i]= playersname[i-61];// updating the present person into 2nd position
EEPROM[11]=EEPROM[10];// changing the saved score according to the above changes
EEPROM[10]=EEPROM[9];
EEPROM[9]=score;
}
else if(score>EEPROM[10]) //checking with 3rd person
{
for(int i=71;i<=75;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 4th person with 3rd person
for(int i=66;i<=70;i++) EEPROM[i]=playersname[i-66];// updating the present person into 3rd position
EEPROM[11]=EEPROM[10];// changing the saved score according to the above changes
EEPROM[10]=score;
}
else if(score>EEPROM[11]) //checking with 4th person
{
for(int i=71;i<=75;i++) EEPROM[i]=playersname[i-71];// updating the present person into 4th position
EEPROM[11]=score; // changing the saved score according to the above changes
}
}
else if(modeselected == 4) //executes if Adults
{
if(score>EEPROM[12]) //checking with 1st person
{
for(int i=91;i<=95;i++) EEPROM[i]=char(EEPROM[i-5]); // updating 4th person with 3rd person
for(int i=86;i<=90;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 3rd person with 2nd person
for(int i=81;i<=85;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 2nd person with 1st person
for(int i=76;i<=80;i++) EEPROM[i] = playersname[i-76]; // updating the present person into 1st position
EEPROM[15]=EEPROM[14];// changing the saved score according to the above changes
EEPROM[14]=EEPROM[13];
EEPROM[13]=EEPROM[12];
EEPROM[12]=score;
}
else if(score>EEPROM[13])// checking with 2nd person
{
for(int i=91;i<=95;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 4th person with 3rd person
for(int i=86;i<=90;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 3rd person with 2nd person
for(int i=81;i<=85;i++) EEPROM[i]= playersname[i-81];// updating the present person into 2nd position
EEPROM[15]=EEPROM[14];// changing the saved score according to the above changes
EEPROM[14]=EEPROM[13];
EEPROM[13]=score;
}
else if(score>EEPROM[14]) //checking with 3rd person
{
for(int i=91;i<=95;i++) EEPROM[i]=char(EEPROM[i-5]);// updating 4th person with 3rd person
for(int i=86;i<=90;i++) EEPROM[i]=playersname[i-86];// updating the present person into 3rd position
EEPROM[15]=EEPROM[14];// changing the saved score according to the above changes
EEPROM[14]=score;
}
else if(score>EEPROM[15]) //checking with 4th person
{
for(int i=91;i<=95;i++) EEPROM[i]=playersname[i-91]; //updating the present person into 4th position
EEPROM[15]=score;// changing the saved score according to the above changes
}
}
lcd_leaderboard(); //caling the leaderboard for making the content to display using EEPROM data
}
/*
* lcd_leaderboard funtion is used to display the `learderboard of the current mode
* It generates four strings
* string 1 === related to first person name and score in leaderboard
* string 2 === related to first person name and score in leaderboard
* string 3 === related to first person name and score in leaderboard
* string 4 === related to first person name and score in leaderboard
*/
void lcd_leaderboard()
{
String s1=" 1. ",s2=" 2. ",s3=" 3. ",s4=" 4. ";
// Each string here is related to the each leader
// i.e. the s1 is related to first person
// in the same way s2 to second s3 to third and s4 to fourth
// according to the mode the score is considered
// updating this strings according to the mode of selection
// each string starts with the person rank in that mode
// and then with his name
// and then with his score
// ex 1. Frank :- 25
// Here in this funtion i varable is used to access EEPROM via index method
if( modeselected == 1 ) //strings will be modified according to the leaderboard(here Athletes mode)
{
for(int i=16;i<=20;i++) s1=s1+char(EEPROM[i]); //Athletes mode 1st playername
for(int i=21;i<=25;i++) s2=s2+char(EEPROM[i]); //Athletes mode 2nd player name
for(int i=26;i<=30;i++) s3=s3+char(EEPROM[i]); //Athletes mode 3rd player name
for(int i=31;i<=35;i++) s4=s4+char(EEPROM[i]); //Athletes mode 4th player name
s1+=" :- "+String(EEPROM[0]); //Athletes mode 1st player score
s2+=" :- "+String(EEPROM[1]); //Athletes mode 2nd player score
s3+=" :- "+String(EEPROM[2]); //Athletes mode 3rd player score
s4+=" :- "+String(EEPROM[3]); //Athletes mode 4th player score
}
else if( modeselected == 2 ) //strings will be modified according to the leaderboard(here Kids)
{
for(int i=36;i<=40;i++) s1=s1+char(EEPROM[i]); //Kids mode 1st playername
for(int i=41;i<=45;i++) s2=s2+char(EEPROM[i]); //Kids mode 2nd playername
for(int i=46;i<=50;i++) s3=s3+char(EEPROM[i]); //Kids mode 3rd playername
for(int i=51;i<=55;i++) s4=s4+char(EEPROM[i]); //Kids mode 4th playername
s1+=" :-"+String(EEPROM[4]);//Kids mode 1st player score
s2+=" :-"+String(EEPROM[5]);//Kids mode 2nd player score
s3+=" :-"+String(EEPROM[6]);//Kids mode 3rd player score
s4+=" :-"+String(EEPROM[7]);//Kids mode 4th player score
}
else if( modeselected == 3) //strings will be modified according to the leaderboard(here Adults mode)
{
for(int i=56;i<=60;i++) s1=s1+char(EEPROM[i]); //Adults mode 1st playername
for(int i=61;i<=65;i++) s2=s2+char(EEPROM[i]); //Adults mode 2nd playername
for(int i=66;i<=70;i++) s3=s3+char(EEPROM[i]);//Adults mode 3rd playername
for(int i=71;i<=75;i++) s4=s4+char(EEPROM[i]); //Adults mode 4th playername
s1+=" :-"+String(EEPROM[8]);//Adults mode 1st playerscore
s2+=" :-"+String(EEPROM[9]);//Adults mode 2nd playerscore
s3+=" :-"+String(EEPROM[10]);//Adults mode 3rd playerscore
s4+=" :-"+String(EEPROM[11]); //Adults mode 4th playerscore
}
else if( modeselected == 4) //strings will be modified according to the leaderboard(here aged mode)
{
for(int i=76;i<=80;i++) s1=s1+char(EEPROM[i]); //Aged mode 1st playername
for(int i=81;i<=85;i++) s2=s2+char(EEPROM[i]); //Aged mode 2nd playername
for(int i=86;i<=90;i++) s3=s3+char(EEPROM[i]); //Aged mode 3rd playername
for(int i=91;i<=95;i++) s4=s4+char(EEPROM[i]); //Aged mode 4th playername
s1+=" :-"+String(EEPROM[12]);//Aged mode 1st playerscore
s2+=" :-"+String(EEPROM[13]);//Aged mode 2nd playerscore
s3+=" :-"+String(EEPROM[14]);//Aged mode 3rd playerscore
s4+=" :-"+String(EEPROM[15]);//Aged mode 4th playerscore
}
// after merging the scores and player names into the strings
// we are going to print those strings in a lcd
// Printing will scroll in a vertical manner
// after 5 times the scrolling stops and the function ends
// But in the mean while if any other player is ready to play then printing stops and
// program flow goes to starting point
String s5 = "Mode : "; // this string is used to display the selected mode
if(modeselected==1) s5+="Athletes";
else if(modeselected==2) s5+="Kids";
else if(modeselected==3) s5+="Adults";
else if(modeselected==4) s5+="Aged";
lcd.clear();
modeselected=0; // overriding the modeselected value to 0 to know the player is ready for next game
for(int i=0;i<3;i++) //loop to print the names on lcd for three cycles
{ //It scrolls the lcd in vertical manner for five times
// in the mean time if any player is ready to write for next game then this loop breaks and goes back to loop function
lcd.setCursor(0,1);
lcd.print(s5);
delay(500);
lcd.setCursor(0,0);
lcd.print(s5);
lcd.setCursor(0,1);
lcd.print(s1);
delay(500);
lcd.setCursor(0,0);
lcd.print(s1);
lcd.setCursor(0,1);
lcd.print(s2);
delay(500);
lcd.setCursor(0,0);
lcd.print(s2);
lcd.setCursor(0,1);
lcd.print(s3);
delay(500);
lcd.setCursor(0,0);
lcd.print(s3);
lcd.setCursor(0,1);
lcd.print(s4);
delay(500);
lcd.clear();
lcd.setCursor(0,0);
lcd.print(s4);
lcd.clear();
delay(1000);
}
}
void athletes() //game module for athletes mode
{
int delay_val[5]={0,700,650,600,580}; // delay values for different levels in this mode
// neglect the zero index in this array
int thresold_score[4]={0,8,17,26}; // thresold scores for entering into next level
// Neglect the 0th index
for(int level=1;level<=4;level++) //entire 4 levels will run
{
for(int leds_glown=0;leds_glown<10;leds_glown++)
{
random_value = random(1,5); //generating random value to make led glow or to run the pattern
if(random_value==1)
{
digitalWrite(button1,HIGH);//led glows
delay(delay_val[level]); //delay whose value depends on level
digitalWrite(button1,LOW); //led off
delay(200);
}
else if(random_value==2)
{
digitalWrite(button2,HIGH); //led glow
delay(delay_val[level]); //delay whose value depends on level
digitalWrite(button2,LOW); //led off
delay(200);
}
else if(random_value==3)
{
digitalWrite(button3,HIGH); //led glow
delay(delay_val[level]); //delay whose value depends on level
digitalWrite(button3,LOW); //led off
delay(200);
}
else if(random_value==4)
{
digitalWrite(button4,HIGH); //led glow
delay(delay_val[level]); //delay whose value depends on level
digitalWrite(button4,LOW); //led off
delay(200);
}
}
if(level==4) break;
if(score<thresold_score[level])
{
return; // game ends (player not allowded into next level)
}
level_change(); // this funtion is used to indicate the change of the level
// It makes all leds HIGH
}
}
void kids() //game module for kids mode
{
int delay_val[5]={0,750,650,600,580}; // delay values for different levels in this mode
// neglect the zero index in this array
int thresold_score[4]={0,7,16,25}; // thresold scores for entering into next level
// Neglect the 0th index
for(int level=1;level<=4;level++) //running four levels
{
for(int leds_glown=0;leds_glown<10;leds_glown++) //generation of patten
{
random_value = random(1,5); //random value to make led glow
if(random_value==1)
{
digitalWrite(button1,HIGH); //makes led on
delay(delay_val[level]); //acording to level delay is given
digitalWrite(button1,LOW); //led off
delay(200);
}
else if(random_value==2)
{
digitalWrite(button2,HIGH);//makes led on
delay(delay_val[level]); //acording to level delay is given
digitalWrite(button2,LOW); //led off
delay(200);
}
else if(random_value==3)
{
digitalWrite(button3,HIGH);//makes led on
delay(delay_val[level]); //acording to level delay is given
digitalWrite(button3,LOW); //led off
delay(200);
}
else if(random_value==4)
{
digitalWrite(button4,HIGH);//makes led on
delay(delay_val[level]); //acording to level delay is given
digitalWrite(button4,LOW); //led off
delay(200);
}
}
if(level==4) break;
if(score<thresold_score[level])
{
return;// game ends (player not allowded into next level)
}
level_change(); // this funtion is used to indicate the change of the level
// It makes all leds HIGH
}
}
void adults() //game module for adults mode
{
int delay_val[5]={0,850,800,750,720};// delay values for different levels in this mode
// neglect the zero index in this array
int thresold_score[4]={0,7,15,24};// thresold scores for entering into next level
// Neglect the 0th index
for(int level=1;level<=4;level++)
{
for(int leds_glown=0;leds_glown<10;leds_glown++)
{
random_value = random(1,5);
if(random_value==1)
{
digitalWrite(button1,HIGH);//makes led on
delay(delay_val[level]); //acording to level delay is given
digitalWrite(button1,LOW);//led off
delay(200);
}
else if(random_value==2)
{
digitalWrite(button2,HIGH);//makes led on
delay(delay_val[level]); //acording to level delay is given
digitalWrite(button2,LOW);//led off
delay(200);
}
else if(random_value==3)
{
digitalWrite(button3,HIGH);//makes led on
delay(delay_val[level]);//acording to level delay is given
digitalWrite(button3,LOW);//led off
delay(200);
}
else if(random_value==4)
{
digitalWrite(button4,HIGH);//makes led on
delay(delay_val[level]);//acording to level delay is given
digitalWrite(button4,LOW);//led off
delay(200);
}
}
if(level == 4) break;
if(score<thresold_score[level])
{
return;// game ends (player not allowded into next level)
}
level_change(); // this funtion is used to indicate the change of the level
// It makes all leds HIGH
}
}
void aged() //game module for aged mode
{
int delay_val[5]={0,900,850,800,770};// delay values for different levels in this mode
// neglect the zero index in this array
int thresold_score[4]={0,6,15,24}; // thresold scores for entering into next level
//Neglect the 0th index
for(int level=1;level<=4;level++)
{
for(int leds_glown=0;leds_glown<10;leds_glown++)
{
random_value = random(1,5);
if(random_value==1)
{
digitalWrite(button1,HIGH);//makes led on
delay(delay_val[level]);//acording to level delay is given
digitalWrite(button1,LOW);//led off
delay(200);
}
else if(random_value==2)
{
digitalWrite(button2,HIGH);//makes led on
delay(delay_val[level]);//acording to level delay is given
digitalWrite(button2,LOW);//led off
delay(200);
}
else if(random_value==3)
{
digitalWrite(button3,HIGH);//makes led on
delay(delay_val[level]);//acording to level delay is given
digitalWrite(button3,LOW);//led off
delay(200);
}
else if(random_value==4)
{
digitalWrite(button4,HIGH);//makes led on
delay(delay_val[level]);//acording to level delay is given
digitalWrite(button4,LOW);//led off
delay(200);
}
}
if(level==4)break;
if(score<thresold_score[level])
{
return; // game ends (player not allowded into next level)
}
level_change(); // this funtion is used to indicate the change of the level
// It makes all leds HIGH
}
}
/*
* Level_change funtion is used to indicate the level change to the player
* by making all led's HIGH for a second and then making low
*/
void level_change()
{
noInterrupts(); // deactivating interrupts
int i=0;
while(i<3){
digitalWrite(button1,HIGH);
digitalWrite(button2,HIGH);
digitalWrite(button3,HIGH);
digitalWrite(button4,HIGH);
delay(800);
digitalWrite(button1,LOW);
digitalWrite(button2,LOW);
digitalWrite(button3,LOW);
digitalWrite(button4,LOW);
i+=1;
}
interrupts(); //activating interrupts
}
/*
* Point_count funtion is an ISR
* It is used to increment the score when the interrupt occur
* i.e. when player presses correct button related to led
* First it makes respective led LOW then increments the count
*/
void point_count() //Couting score when interrupt encounters
{
if(random_value==1)
{
digitalWrite(button1,LOW);
}
else if(random_value==2)
{
digitalWrite(button2,LOW);
}
else if(random_value==3)
{
digitalWrite(button3,LOW);
}
else if(random_value==4)
{
digitalWrite(button4,LOW);
}
score=score+1;
}
/*
* EEPROM_init funtion is used to initilize the EEPROM with default value
* Scores with 0
* Names with -
*/
void EEPROM_init()
{ // Here i varable used to access the EEPROM memory using indexing method
for(int i=0;i<=15;i++) EEPROM[i]=0;
for(int i=16;i<=95;i++) EEPROM[i]='-';
}
Note:
Tweak the delays for all the modes based on your desire and anticipated difficulty level.
In prototype we have assembled the Game unit in a single general PCB for ease. For improved gaming/ training experience assemble the game over a cardboard spacing out the keys from each other.
Use tactile switches instead of push buttons for much smoother experience.
Try this project and let us know about your experience. Post your thoughts, comments, queries and feature suggestions in the comments section below. Browse other Arduino projects in our website.
The above shows the block diagram of our Arduino reflex trainer project. This uses 5×4 Keypad for taking mode inputs for mode selection and leader mode name inputs. The LCD to display the status of the game and acts as an interface to interact with users. The Game unit has 4 LED’s and 4 push buttons. This is unit which the player will use to play and train using this game.
